The iO-Fly

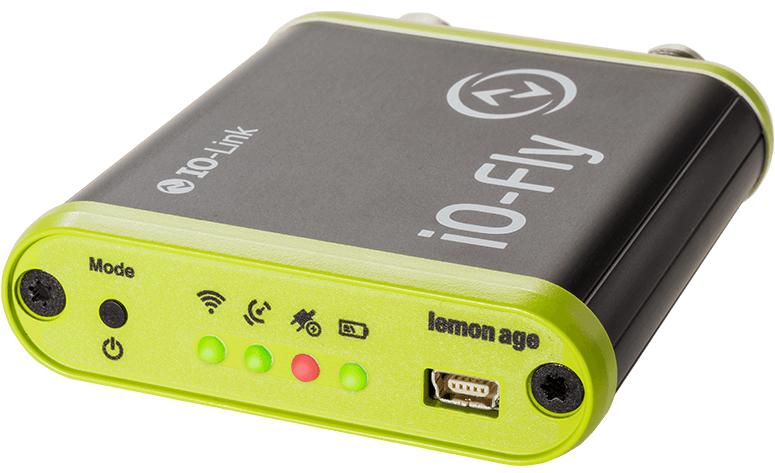

Colored LEDs provide information about the status of the iO-Fly, the battery charging status, the connection to the IO-Link device as well as the type of established wireless connection. The integrated battery can be charged via a USB port.

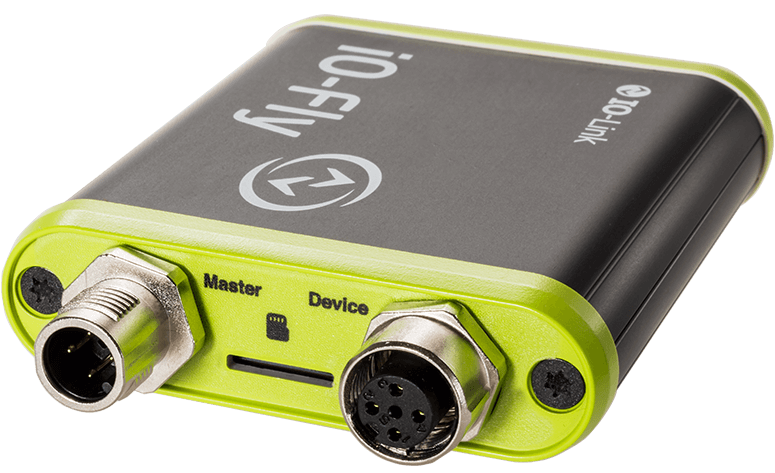

The device provides connection options for an IO-Link device and in IO-Link master as well as a slot for a Micro SD card.
The iO-Fly links IO-Link compatible sensors or actuators with your tablet (Android or iPad) via WLAN or Bluetooth LE. The built-in battery can supply the device itself with power as well as the connected IO-Link device, allowing mobile working.
The running time of the battery is over 3 hours with a permanent power of 2 Watt. Alternatively, the power supply of the connected IO-Link device can also be provided via an IO-Link master or the USB port on the iO-Fly.
Work mobile thanks to
integrated WLAN, Bluetooth
LE and built-in battery.
iO-Fly can be operated in three different modes:
Bridge mode
In bridge mode, iO-Fly communicates directly with the connected IO-Link device, cyclically reads out the device process data and transfers these to the iO-Fly app for visualisation. Conversely, any changes to the parameters made in the iO-Fly app as well as control commands to the IO-Link device are transferred.
Sniffing Mode
In sniffing mode, the iO-Fly is interconnected between the IO-Link device and the IO-Link master. Without influencing the existing connection between IO-Link device and IO-Link master, the iO-Fly tracks their communication and stores it on an SD card which can be inserted into the iO-Fly. The data can later on be read out and analyzed from there. Parallel to saving the data to the SD card, they can also be displayed and analyzed directly on a tablet using the iO-Fly app.
Direct Mode
When modern 4-wire devices with IO-Link compatibility are operated on older systems, iO-Fly provides the complete IO-Link functionality of the devices.
Technical data of the iO-Fly
| Dimensions: | 70 x 20 x 95 mm (WxHxD) |
| Weight: | 154 g |
| Interfaces: | 1 x port for IO-Link device, 1 x port for IO-Link master, 1 x Micro SD card, Bluetooth LE, WLAN, additionally optional: RS232 and RS485 |
| Supported standards: | IO-Link versions: 1.0 and 1.1, IODD versions: 1.0.1 and 1.1 |
| Power supply: | Optionally via integrated USB port, IO-Link master or integrated battery In battery mode: Max. amperage IO-Link device: 350 mA, voltage IO-Link device: 24 V - 20 %, operating time over 3 h at 2 W |
| Operating temperature: | 0 to 40 °C |
Customs
| Country of origin: | Germany |
| Customs tariff number: | 85176200 |
